CFMOTO 1000MT-X LM ECU EUR5b

Description

Once again COOBER is setting the benchmark for CFMOTO reliability, performance and safety.

COOBER LM ECU for CFMOTO 1000MT-X, is a must have product:

– full support for each gear and drive mode
– full support of factory EUR5b  software sequence
– full support for de-cat and aftermarket mufflers, STREET/ADV/OFFROAD mode
– perfect torque output at low/mid revs
– improved 0-1/2 throttle performance and better throttle Response
– fixing jerky throttle at bottom rpm range
– fixing acceleration gap at bottom rpm range
– better power delivery at part throttle
– very reliable setup, developed by COOBER
– Fully Plug N Play only two connections
– Support for all warning lights and standard functions

We managed to eliminate the dangerous engine jerking in the lower and middle rpm range, better thermal management also. The bike accelerates better and corners can be driven in higher gear.



Install:

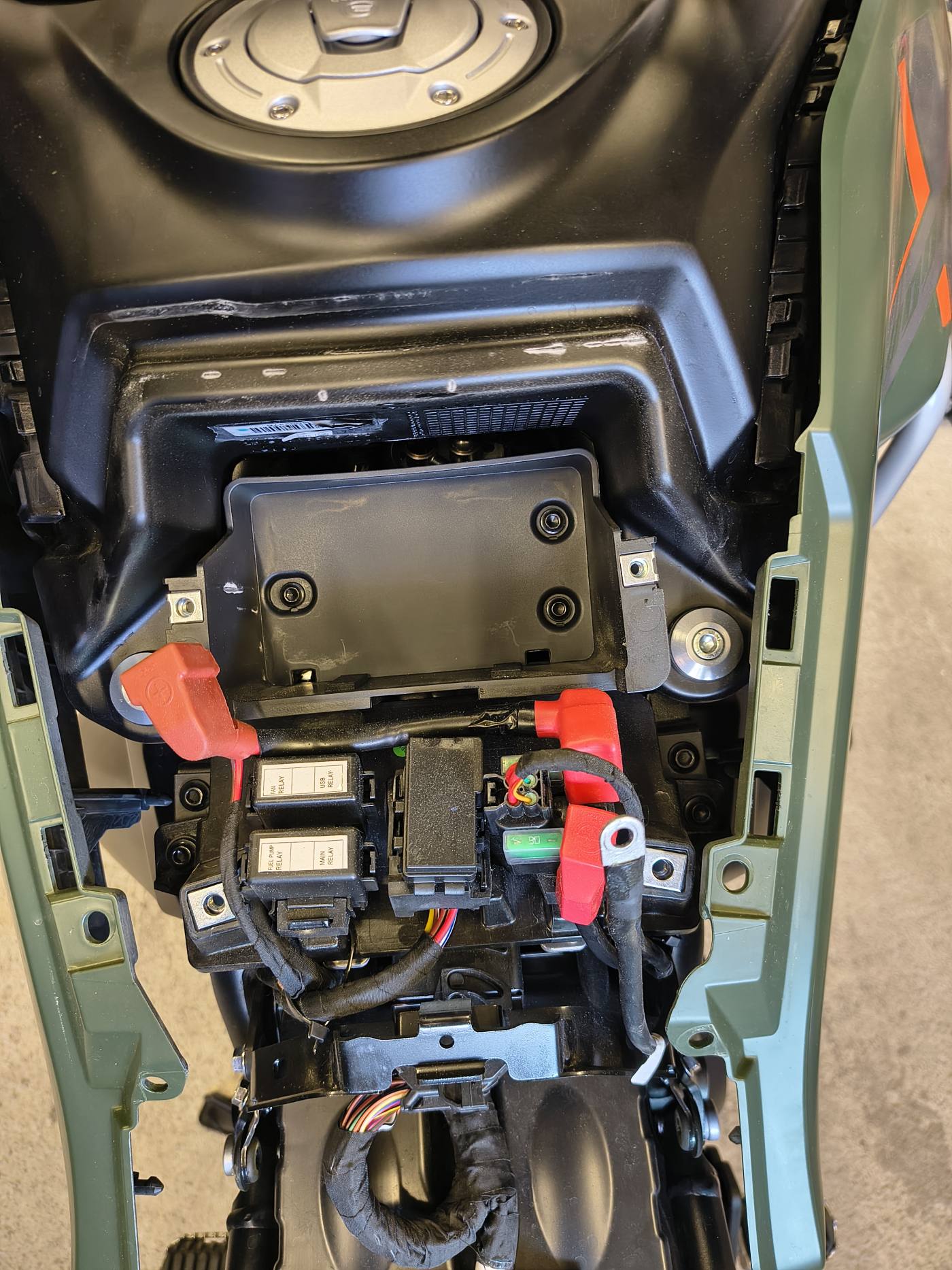

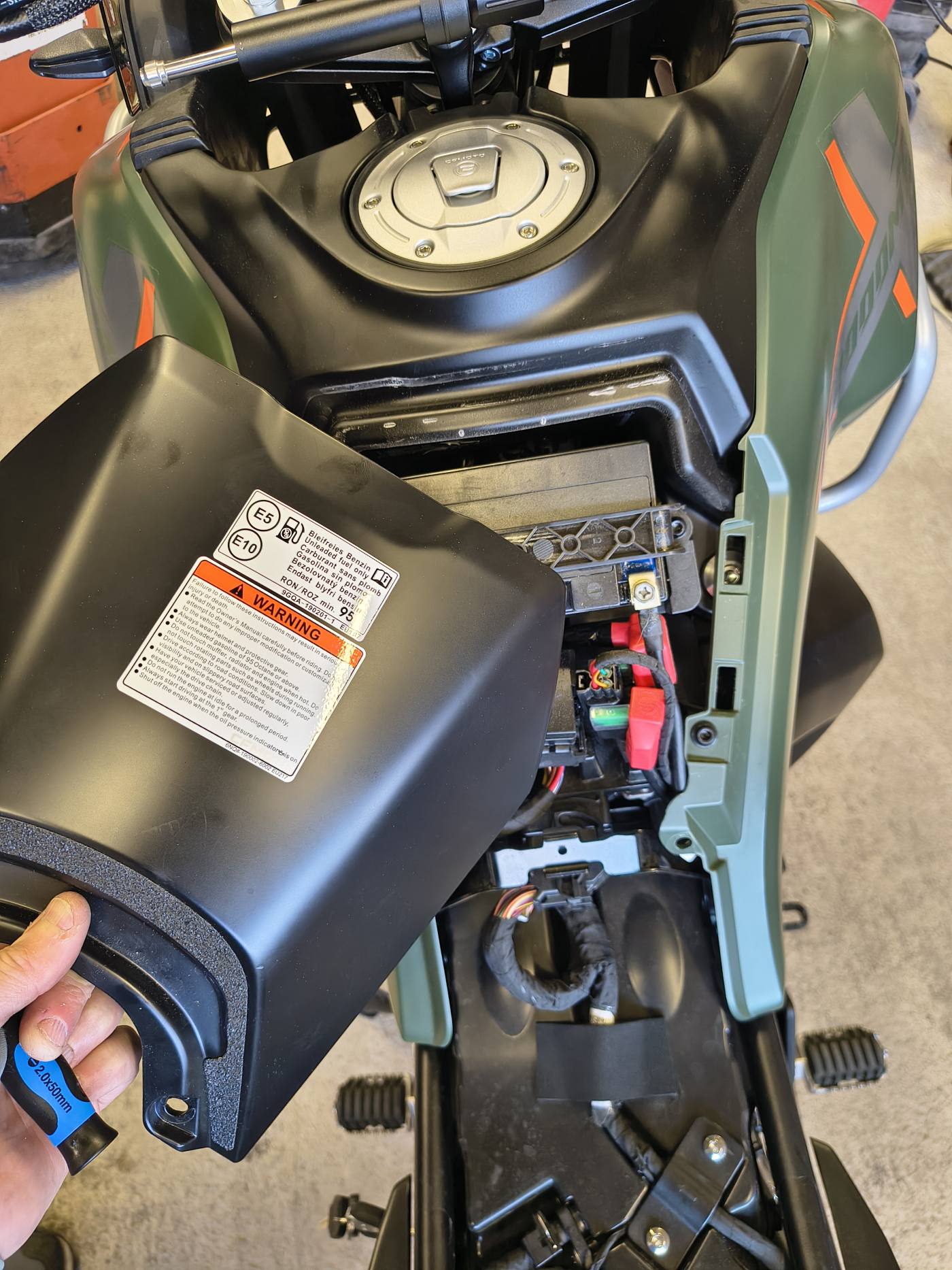

Remove Battery cover

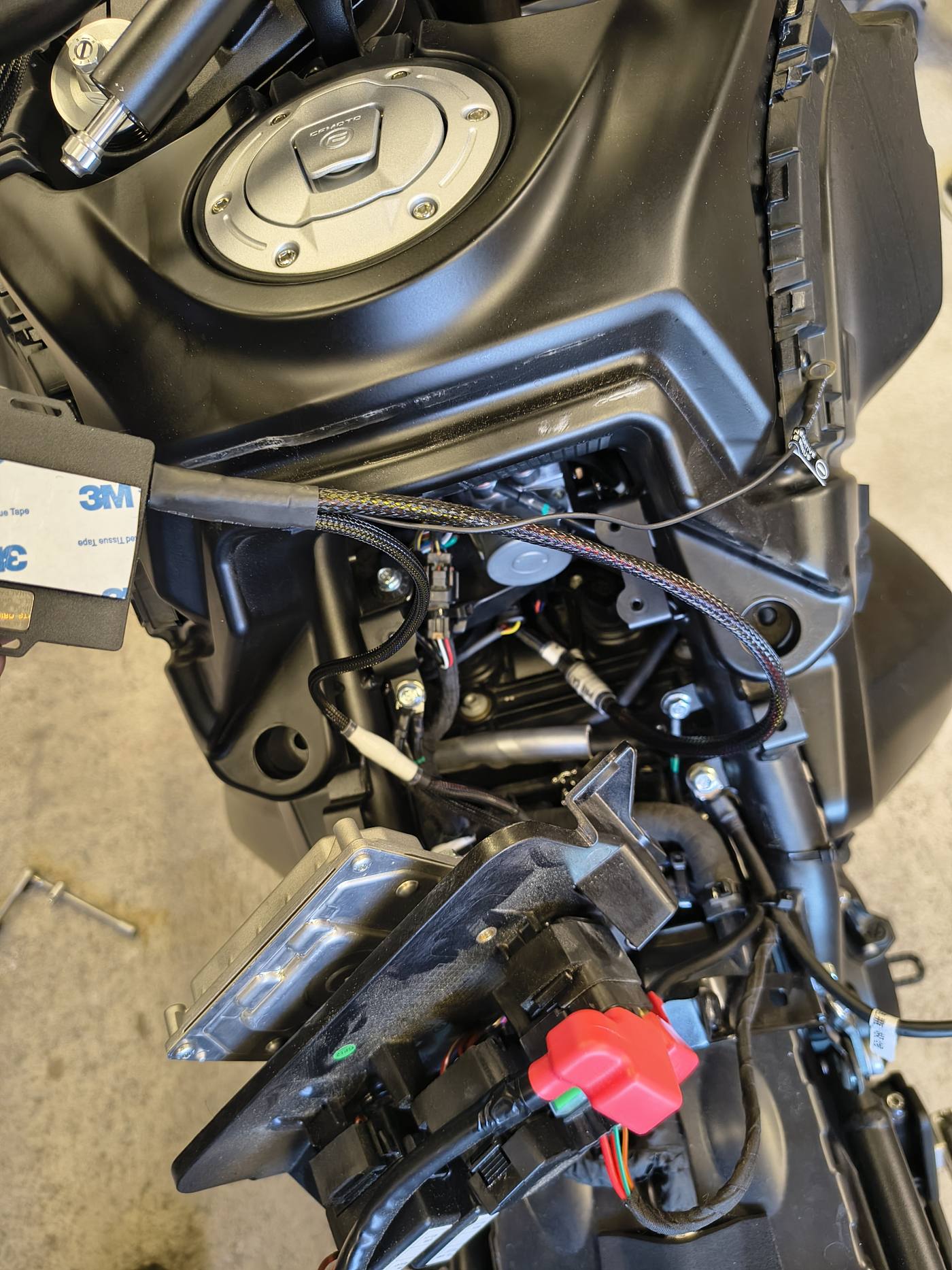

Remove the engien cover  with 3 bolts : UPDATE: (there are also in each side two more )

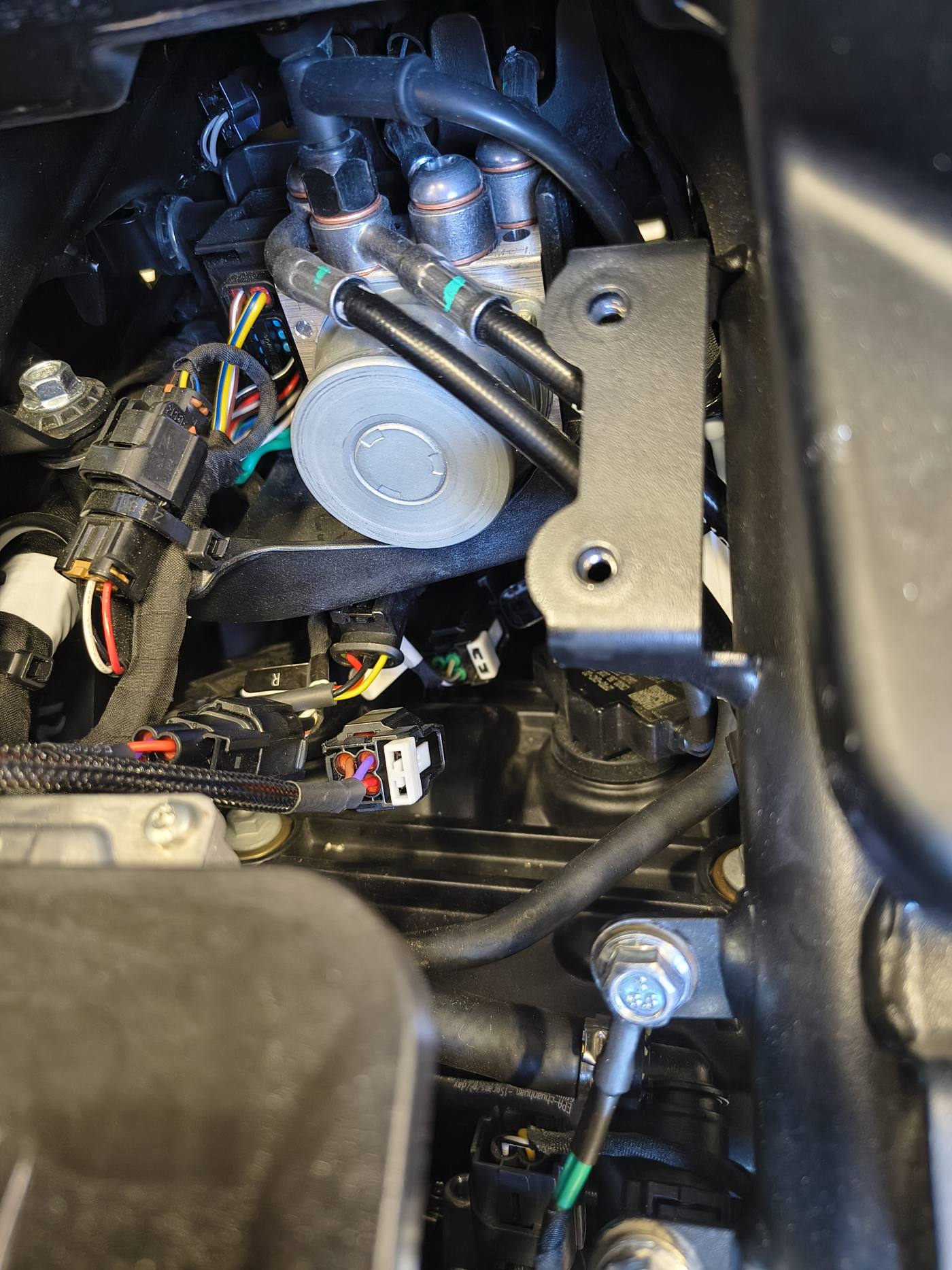

Under the ABS block you can see the plugs of the Oxygen sensor
Do sensor by sensor (it is not important what string on coober harness you use)

Take your time here.

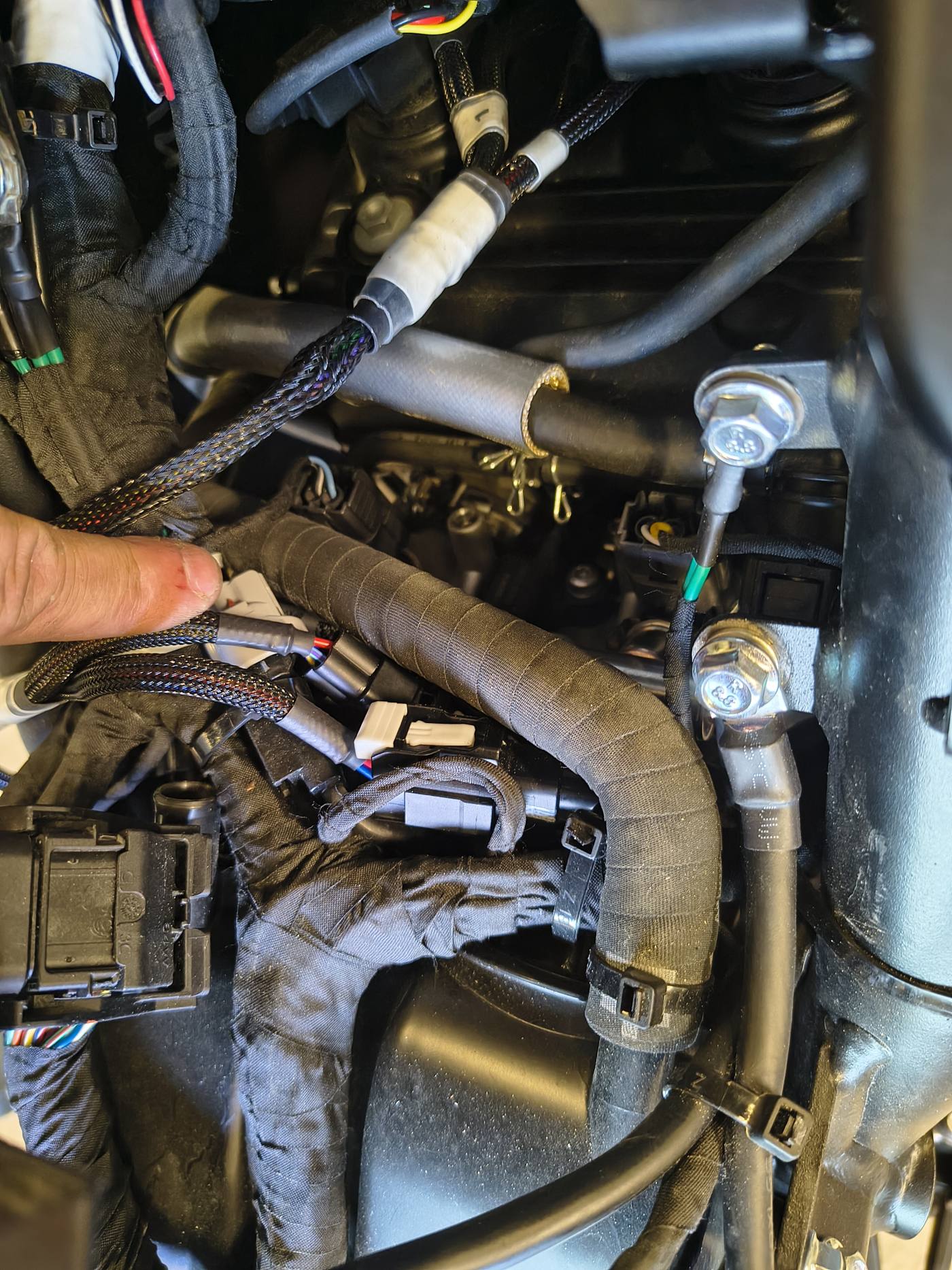

the rear oxygen sensor (post cat)  also there, easy to reach and plug

Put everything back

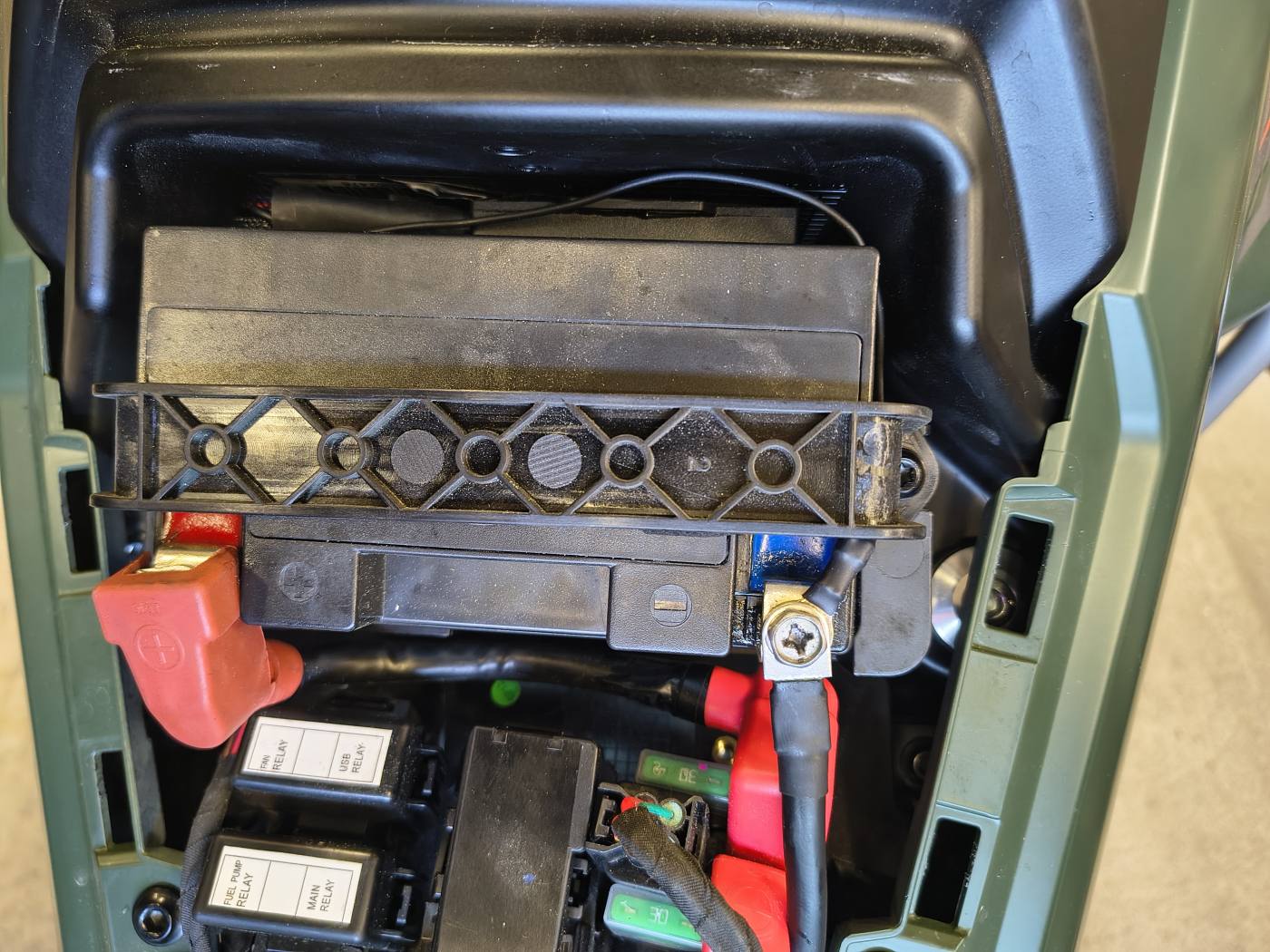

Place the ecu above the battery, it fits perfect there

Also connect ground wire to battery negative
